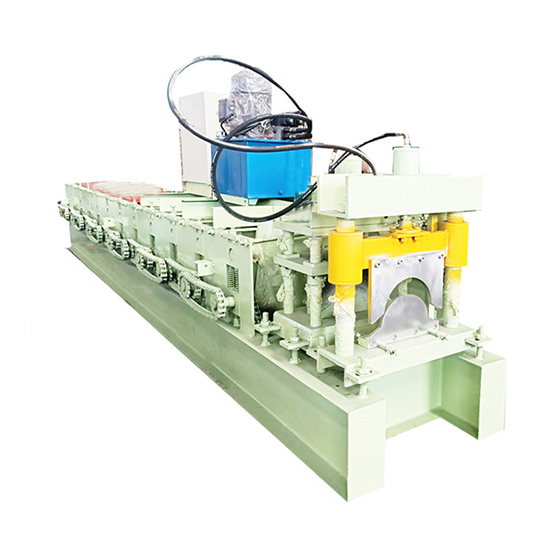

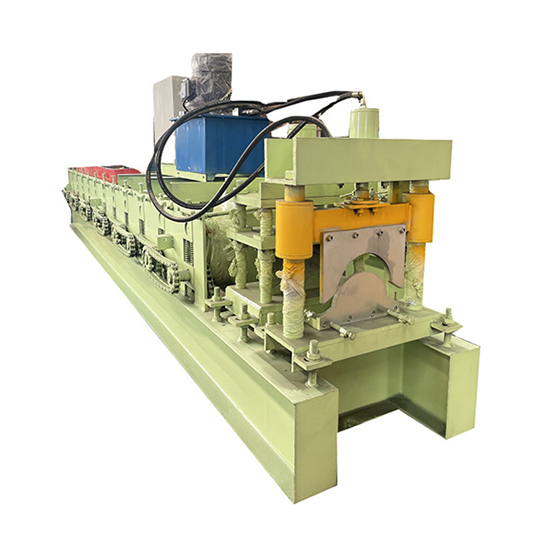

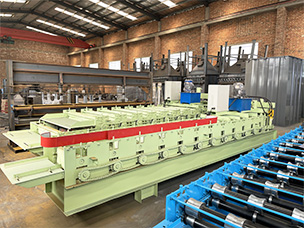

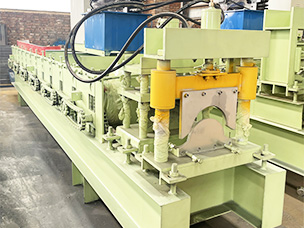

Galvanized Ridge Cap Roll Forming Machine
Ridge tile equipment is mainly used in urban buildings, such as warehouses, walls of special buildings, and enclosure structures.It is characterized by light weight, rich colors, classical elegance, easy installation and maintenance, waterproof and fireproof ability.
Description
Ridge tile equipment is mainly used in urban buildings, such as warehouses, walls of special buildings, and enclosure structures.It is characterized by light weight, rich colors, classical elegance, easy installation and maintenance, waterproof and fireproof ability.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working.
Feature : Ensure stability , precision and lifetime.Sincerely welcome to contact us!
Product Details
Parameter
|
No |
Item |
Data |
|
1 |
Raw material width |
450-800 mm |
|
2 |
Sheet effective width |
300-600 mm |
|
3 |
Raw material |
Color steel sheet or galvanized steel sheet |
|
4 |
Material thickness |
0.3-0.8 mm or customized |
|
5 |
Forming roller material |
45# steel plated with chrome |
|
6 |
Shaft diameter |
70 mm |
|
7 |
Forming roll station |
8-16 steps |
|
8 |
Main motor power |
3 KW 4 KW 5.5 KW(according to type) |
|
9 |
Hydraulic power |
4 KW (according to type) |
|
10 |
Control system |
PLC control |
