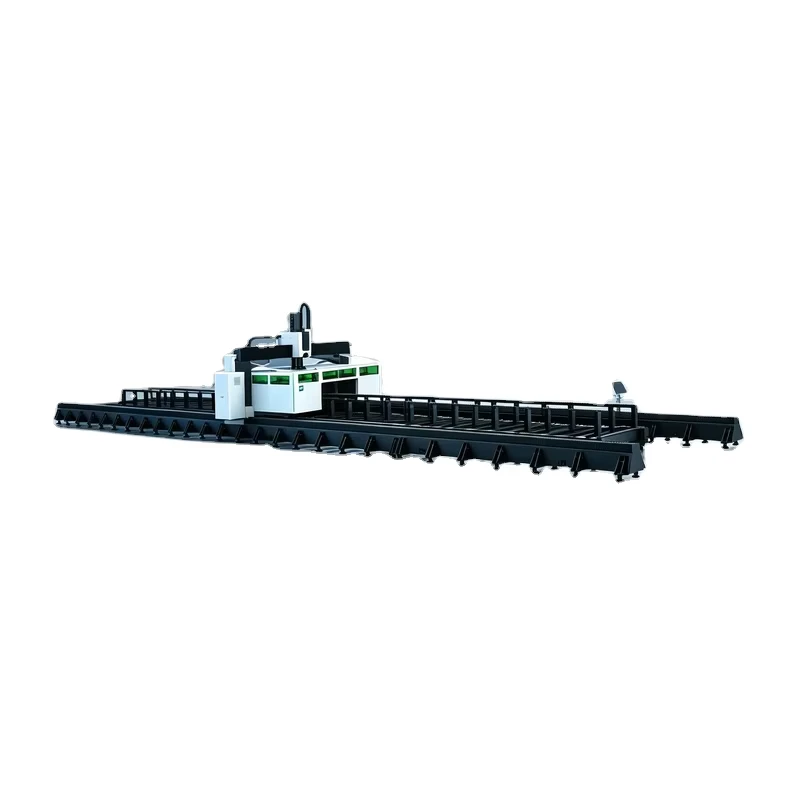

I Profile Cutter Pipe Cutting Machine 5 Axis Configuration for H Beam
I Profile Cutter Pipe Cutting Machine 5 Axis Configuration for H Beam
| laser type | Fiber Laser | Applicable Material | Metal, SS, CS, Aluminum, Brass, Copper, Galvanized Steel |
| cutting area | length 12m; dia 20-450mm | cutting thickness | 0-25mm |
| products handled | Tube | configuration | 5-Axis |
| Feature | Automated Loading | mode of operation | Continuous Wave |
| cooling mode | WATER COOLING | Laser Source Brand | Raycus |
| control system brand | PA | servo motor brand | Yaskawa |
| guiderail brand | HIWIN | laser head brand | Raytools |
| optical lens brand | II-VI | graphic format supported | AI, DXF, AI, DXF, Solideworks , Pro/e , UG |
| condition | New | Key Selling Points | High Productivity |
| cnc or not | Yes | Control Software | PA |
| Weight | 150000 KG | Mode | Mega4 Laser Pipe Cutting Machine |
| Pipe length | up to 12m loading and 12m unloding | Pipe diameter | round 0.78" x 17.7"mm; square 12.5" X 12.5" |
| Applicable Types | I-beam, round, square, rectangular, oval, aluminum profile | Applicable material | ss, cs, aluminum, brass, galvanized steel |
| tail length | 0mm | Max. rotation speed | 75r/min |
| Positioning accuracy | 0.05mm | Precessing limited | CS: 1-10mm(air) 1-20mm(O2) SS:1-16mm(N2) |
| Laser power | 3000W- 12000W |
