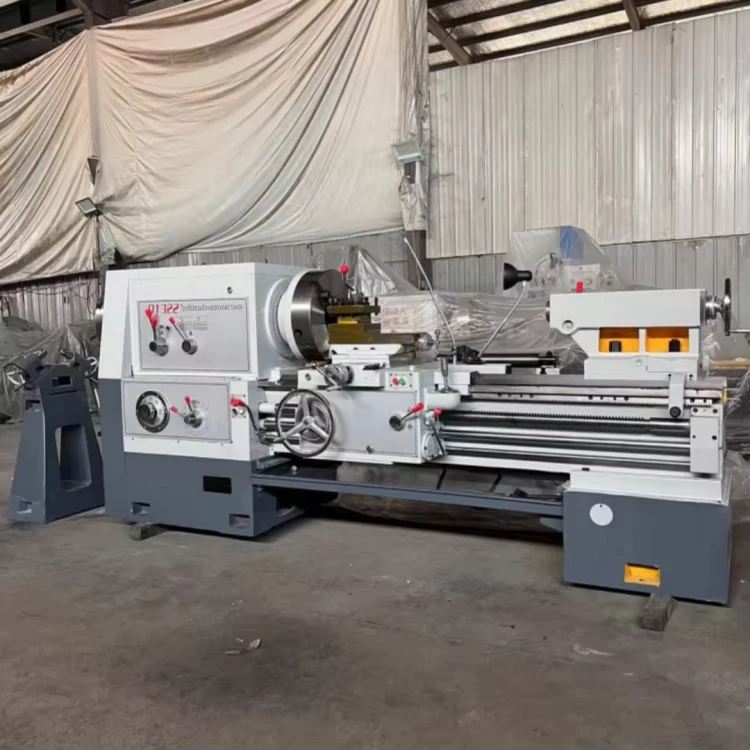

Made Ordinary Manual Metal Lathe C6266A Horizontal Lathe Horizontal Metal Lathe Machine
Made Ordinary Manual Metal Lathe C6266A Horizontal Lathe Horizontal Metal Lathe Machine
| type | Horizontal | machining capacity | Medium Duty |
| max. length of workpiece (mm) | 3000, 2000, 1500 | spindle taper | D1-8 |
| machinery test report | Provided | tool post stations | 8, 6 |
| video outgoing-inspection | Provided | max. weight of workpiece(kg) | 100 |
| range of spindle speed(r.p.m) | 25 – 1600 r.p.m | weight (kg) | 3065 KG |
| cutting torque | 20 N.m | Swing over bed | 660mm(26") |
| Swing over cross slide | 440mm (12-19/32") | Swing in gap diameter | 900mm(29 ") |
| Distance between centers | 1500mm(60'') | Valid length of gap | 250mm(10") |
| Width of bed | 400mm(15-13/16") | Taper of spindle bore | 113(1:20) |
| Compound rest travel | 230mm(9-1/8") | Cross slide travel | 368mm(14-1/2") |
| Max. Section of tool | 25*25mm | Warranty of core components | 1 Year |
| Marketing Type | Hot Product 2024 |
