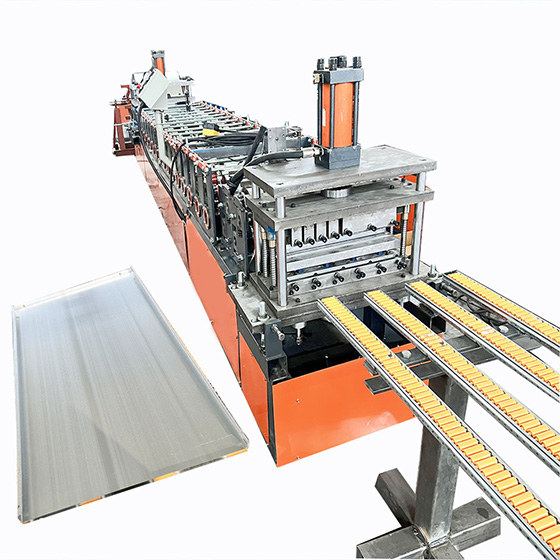

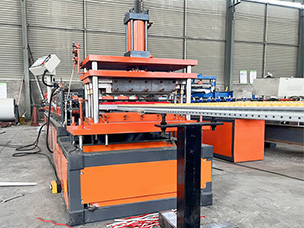

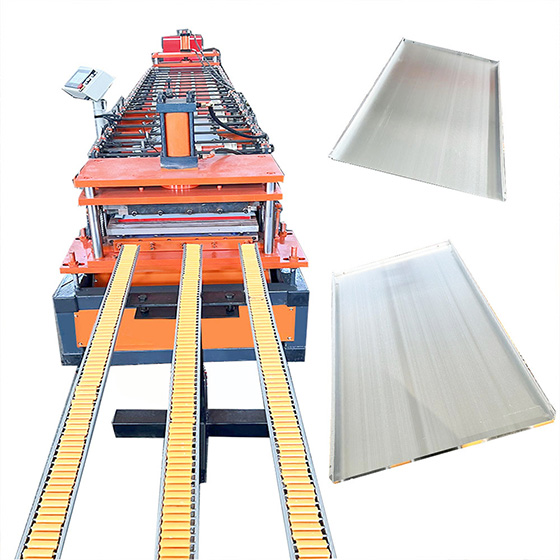

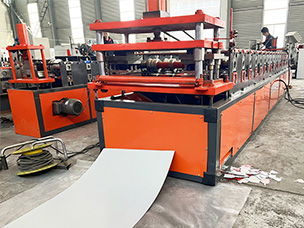

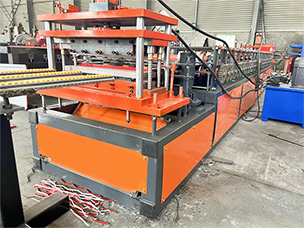

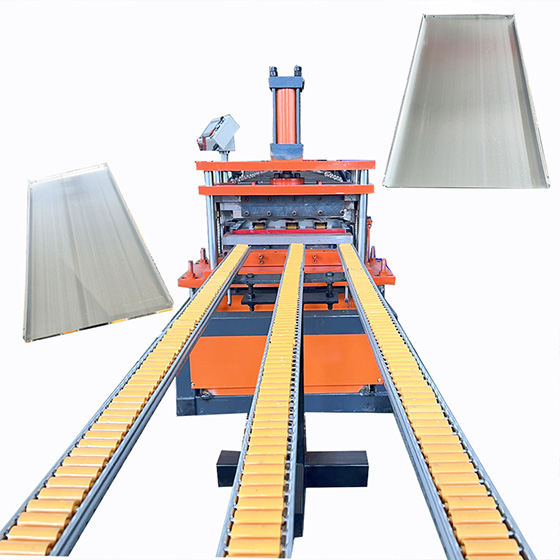

Shelf Panel Roll Forming Machine
Advantages of storage shelf forming machine and shelf forming equipment:
1.Highly automated procedures to reduce manual operation;
2.High work efficiency, improve enterprise productivity...
Description
Advantages of storage shelf forming machine and shelf forming equipment:
1.Highly automated procedures to reduce manual operation;
2.High work efficiency, improve enterprise productivity;
3.The production process of the whole process is stable to improve the quality and consistency of products;
4.Mass production reduces the production cost of enterprises.
Product Details
Parameter
|
No. |
Item |
Data |
|
1 |
5T hydraulic decoiler |
Max 5T Max coil:800mm Hydraulic expansion and motorizied decoiling |
|
2 |
Holes Punching & corner cut |
We use hydraulic punching machine 2 sets Corner cut mould 1 set Lateral holes punching mould |
|
3 |
Logo stamping |
Stamping mould:1 set |
|
4 |
Roll forming Machine |
Wall Panel Catilever Structure 24 Forming Stations 15KW Motor Made In China |
|
5 |

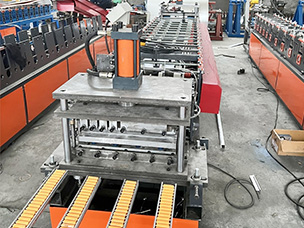

Hydraulic Cutting&bending mould combination |
Cutting power:7.5kw Mould material:Cr12.HRC58-62 |
|
6 |
Run-out table |
Steel frame with Rollers |
|
7 |

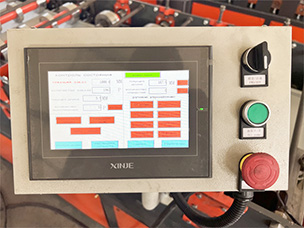

Electric control panel |
PLC Control |
|
8 |
Suitable material |
Galvanized Steel Coils |
|
9 |
Material Thickness |
0.8-1.2mm |
|
10 |
Material width |
According to design deawing |
